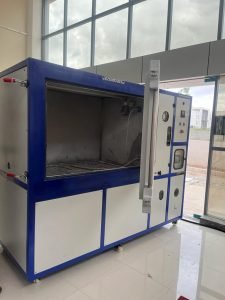

Buy Dust Chamber (IP 5X, 6X) as per Cl: 2.1.1 and 2.1.2 of IS: 10322 (Part- 1:2014) and IS/IEC 60529 with latest amendments
If you are looking for a dust chamber (IP 5X, 6X) as per Cl. 2.1.1 and 2.1.2 of IS 10322 (Part 1:2014) and IS/IEC 60529, then you are at the right place. We are selling the best quality dust chamber (IP 5X, 6X) at the lowest price in India and all over the world. If you want to purchase a dust chamber as per EN/IS/IEC 60529, you can feel free to contact us at qtcind@gmail.com.
Dust Chamber (IP 5X, 6X) suitable to check dust-proof luminaires (first characteristic IP numeral 5 and 6) and dust-tight luminaires for the entry of dust particles inside it as per Cl: 2.1.1 and 2.1.2 of IS: 10322 (Part- 1:2014) and IS/IEC 60529 with latest amendments.
The test is made using a dust chamber incorporating the basic principle shown in fig.-2 of IEC 60529. Luminaries/objects are tested in this dust chamber in which talcum powder is maintained in suspension by air. A glass window with a wiper is provided in this chamber through which the luminary’s position, ON and OFF conditions of the specimen can be viewed.
Internal- 16 swg (1.5 mm) SS and External: 18 SWG MS CRCA with both powder coated finish. Insulation – 40mm thick glass wool insulation. Door- Full front opening door, double-walled, insulated. Suitable gasket, hinges, and latches- Heavy-duty hinges with toggle-type locking arrangement. Mounting- Fixed type. Finish- Powder coated finish.
A blower with a motor will be provided to spray the dust in the chamber. The blower will suck the air (dust) from the chamber through a suction pipe and pass through the duct and will spray on top of the chamber. The amount of talcum powder used will be 2kg/cu- meter of the test chamber volume (talcum powder used can pass through a sieve mesh of wire dia 50μm and dist b/w two wires 75μm). Suitable ducting will be provided for spraying the dust in the chamber. The blower will be suitable to make suspension of talcum powder in the chamber workspace. A suitable capacity vibrator is provided to vibrate the chamber as and when required.
The suitable capacity vacuum pump will be provided with a suitable vacuum valve and dust filter. A pressure gauge (vacuum meter) will be provided for measuring pressure inside the sample. The sample under test will be supported inside the test chamber by a trolley/stand and the pressure inside the sample will be maintained below the surrounding atmospheric pressure by a vacuum pump. A suitable pipeline with a flexible connection and flexible hose is provided to make the proper suction, connecting to the device under test. A rotameter (Air flow meter) will also be provided. To maintain the internal ambient temp (during the Rainy/ Winter season) suitable heaters are provided in the unit.
A separate control panel will be provided fitted with an Autotransformer, Voltmeter, Rotameter (Flow meter), Vacuum gauge, etc., valve, ON/OFF switches, fuse, contactors, mains indicating lamps, and Power ON and OFF Push Buttons, etc.
Display Unit: HMI / Android
- Android / HMI with Modbus,
- 8’ display,
- 1290 X 900 Resolution,
- 2 GB RAM, 8 GB ROM,
- Integrated Microcontroller/PLC,
- GPIO – Isolated Relay Driver.
In HMI Provision is made for turning ON/OFF the Vibration, Luminaire/Load, heater, inside lamp, vacuum pump, and Blower. For Luminaire/load, Blower, vibrator, vacuum pump, and total test the pre-settable time (test time) is Provided. After completion of the set time (test time), test completed indication will appear.
All Indications like vibrator ON/OFF, blower ON/OFF, lamp ON/OFF, heater ON/OFF, vacuum pump ON/OFF, termination of the test, etc.
Inner Dimn: 1200 × 1000 × 1000 mm (H).
Outer Dimn (approx.): 1800 x 1500 x 2100 mm.
(HSN code: 9031)
Get a Free Quote by emailing us: at qtcind@gmail.com
TERMS AND CONDITIONS
CALIBRATION: Calibration charges for various digital meters fitted in different control panels are extra at actual, Calibration is carried out at an independent test laboratory traceable to the National and International Standards.
INSTALLATION: For complete installation and demonstration we can depute our engineers for which charges are extra at actual.
PRICE: Ex-works, Bangalore, Packing and Forwarding charges are extra @ 4% of the value. GST is extra at 18%. Insurance is extra at actual. Freight is on a TO-PAY basis.
DELIVERY: Within 8-10 weeks from the date of receipt of your order.
PAYMENT: 50% advance along with the order, balance 50% after inspection and before dispatch from our works.
VALIDITY: For 10 days
GUARANTEE: All our products are guaranteed against manufacturing defects for 12 calendar months from the date of supply.
