Buy Oscillating Test Tube Testing Equipment (IPX3, IPX4) as per IS /IEC 60529 Standard with the latest amendments

If You are looking to Buy Oscillating Test Tube Testing Equipment (IPX3, and IPX4) as per IS /IEC 60529 Standard, we are one of the best Oscillating Test Tube Testing Equipment manufacturers and suppliers in India and all over the world,

if you need any type of IP Oscillating Test Tube Testing (IPX3, and IPX4) Equipment, you can feel free to contact us at qtcind@gmail.com

Oscillating Test Tube Testing Equipment for testing Degree of protection against ingress of water tests IPX3 i.e. Water rainproof test and IPX4 i.e. water splashproof tests as per IS /IEC 60529 with latest amendments. The test equipment – Oscillating tube is to verify the degree of protection provided against the spraying of water for IPX3 and IPX4 degree of protection provided at 60° and 180° respectively.

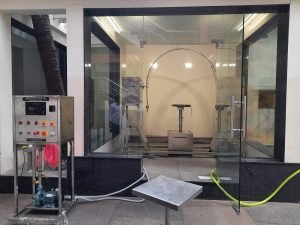

Buy Oscillating Test Tube Testing Equipment (IPX3 and IPX4) as per IS /IEC 60529

The Oscillating tube with a maximum radius of 800 mm and a number of nozzles are 52 and they are mounted at a distance of 50mm b/w them. The oscillating tube will be capable of oscillating over the test sample on either side vertically through 60° (total 120° for IP X3) and 180° (almost 360° for IP X4) with one complete oscillation is about 4 seconds and 12 seconds respectively as required by the IS /IEC 60529 with latest amendments. Both the IP X3 and IP X4 tests can be conducted in the same equipment, the provision for blocking the jet holes as and when required for conducting IPX3 and IPX4 tests is provided.

The tube has oscillated with the help of a suitably geared DC stepper motor with couplers, controller and control valve, pressure gauge(0- 2 kg/cm2), and Rota meter (0- 10 LPM) provided to control and measure the pressure of water.

The luminaries/object is mounted above the pivot line of the tube and is kept below the Centre of the circle with adjusted height so that jets of water are directed towards the luminaries. An electric pump is provided for the supply of water.

In rain proof luminaries test (IP X3) the tube will be perforated so that jets of water are directed towards the Centre of the circle and the water pressure at the inlet of the apparatus will be approx. 80 kN/m2. In splashproof (IP X4) luminaries water is sprayed from every direction by means of spray apparatus.

Test apparatus mainly consists of a Semi-circular arc tube SS pipe coupled to a suitable motor directly or by means of the gearbox, these motors are slow RPM motors with high torque, and speed is controlled through HMI and PLC. The tube has oscillated with the help of a suitable motor coupler PWM controller and a total angle of 120o or 360o for rainproof and splash-proof respectively. The device under test is mounted at the Centre of the table with 1RPM motor driver unit.

Motor Type: DC stepper Motor, High Torque
Oscillation angle set: 360^∘ (180^∘ x2), 120^∘ (60^∘ x2),
No. of Oscillations: User Programmable (Min.2 No.)
Oscillation Time: Approx 12 seconds for 1 oscillation of 120^∘ x 2, Approx 4 seconds for 1 oscillation of 60^∘ x 2
Angle control Feedback: Rotary angle Encoder

Display Unit; HMI / Android

Android HMI with Modbus,
8’ display,
1290 X 900 Resolution,
2 GB RAM, 8 GB ROM.
Integrated Microcontroller/PLC.
GPIO – Isolated Relay Driver.

In HMI Provision is made for test type selection (360 o or 120o), turning ON/OFF the Rotation, Luminaire, and water pump. For Luminaire and total test, the pre-settable time (test time) is Provided. After completion of the set time (test time), test completed indication will appear.

All Indication like Rotation ON/OFF, Luminaire/ load ON/OFF and water pump
ON/OFF, termination of test, etc.

Turn Table / Luminaire Rotating System suitable to use during IPX 3 and IPX4 Water Test in luminaires consisting of Geared Motor, set of reduction gear, set of copper strips with spring loaded carbon bushes to give continuous power supply to the luminaire during the test [luminaire can be switched ON during its rotation while testing]. The luminaires is made to turn about their vertical axis during the test at a rate of approx. 1 revolution per minute and the sample mounting stand can be adjustable up and down. All items are housed in an SS outer water-tight cabinet enclosure.

All the necessary controls like LCD, rotary switch, MCB, Fuse, SSR, Emergency switch, Indicator lamp, etc are housed in the stand-alone control panel, which is fabricated in the SS material.
TECHNICAL DATA
Radius of semicircle: 800 mm (approx.)
Size of perforated: 0.4 mm
Distance between center of jets: 50 mm
Inner Dia of Pipe : > 15 mm
Oscillation of the tube: Controlled through HMI / Android
Water pressure at inlet: adjustable.
(HSN code: 9031)

Get a Free Quote by emailing us: at qtcind@gmail.com

TERMS AND CONDITIONS

CALIBRATION: Calibration charges for various digital meters fitted in different control panels are extra at actual, Calibration is carried out at an independent test laboratory traceable to the National Standards.

INSTALLATION: For complete installation and demonstration we can depute our engineers for which Charges are extra at actual.

PRICE: Ex-works, Bangalore, Packing and Forwarding charges are extra @ 4% of the value. GST is extra at 18%. Insurance is extra at actual. Freight is on a TO-PAY basis.

DELIVERY: Within 8-10 weeks from the date of receipt of your order.
PAYMENT: 50% advance along with the order, balance 50% after inspection and before dispatch from our works.
VALIDITY: For 10 days
GUARANTEE: All our products are guaranteed against manufacturing defects for 12 calendar months from the date of supply.
